4900SS
Standard Upright Shovel-Out Ice Bins
•
Upright Style Pouch Front Bins
4900SS
Standard Upright Shovel-Out Ice Bins
•
Upright Style Pouch Front Bins

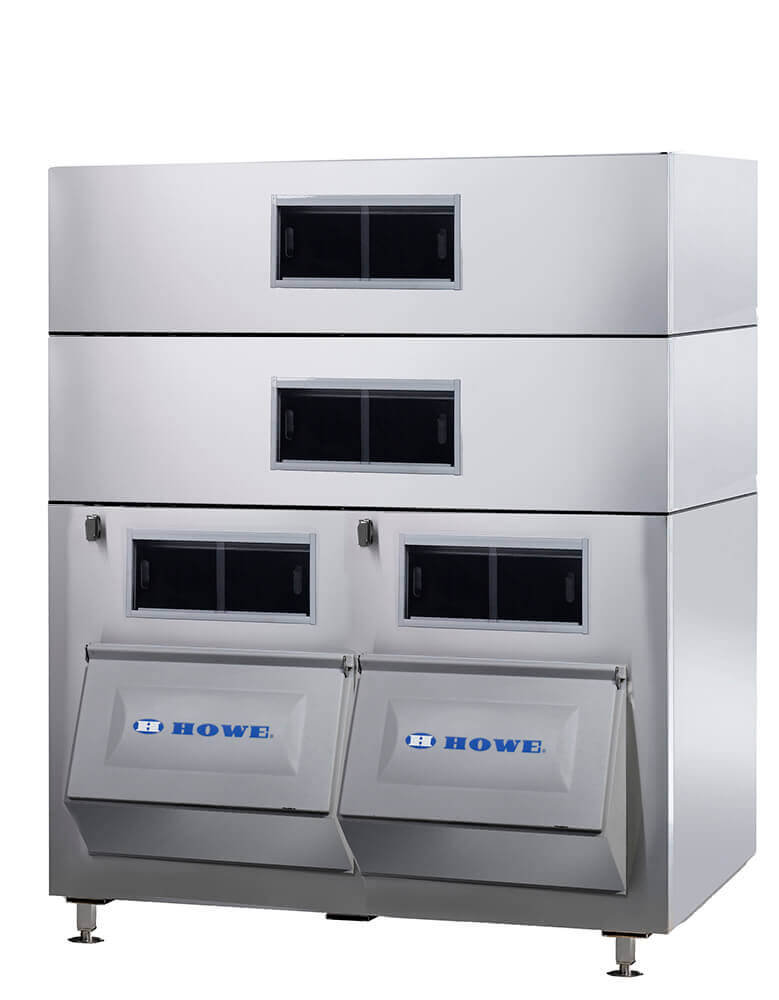

Howe model 4900SS upright ice storage bins are constructed with stainless-steel sides top and front, with stainless-steel liners. Ice bin tops are structurally reinforced and insulated. Tops include a condensate drip pan (for RL model ice flakers) and patented factory mounted ice level control boxes which are integral to the ice bin top to insure proper alignment and provide greater protection, as well as external access to photo eyes.
- Optional coved corners on stainless-steel liner
Upright Bins Specifications
Width (in/cm)
72/183
Depth (in/cm)
48/122
Height (in/cm)
96/244
Bin Interior
Stainless Steel
- Bin Brochure 10-17.pdf
Special coved interior corners are available for all stainless steel lined bins for use in food manufacturing facilities.
Related Products
Std Refrigerant: R-404A
Optional Refrigerants: R-507, R-407, R-448, R-449
Std Voltage: 208-230/1/60
Optional Voltage: 220/1/50, 460/3/60, 380/3/50
Capacity in lbs: 4000
Capacity in Kgs: 1816
Std Refrigerant: R-404A
Optional Refrigerants: R-507, R-407, R-448, R-449
Std Voltage: 208-230/1/60
Optional Voltage: 220/1/50, 380/3/50, 460/3/60
Capacity in lbs: 6000
Capacity in Kgs: 2724
Std Refrigerant: R-404A
Optional Refrigerants: R-507
Std Voltage: 230/1/60
Optional Voltage: 220/1/50, 460/3/60, 380/3/50, 575/3/60
Capacity in lbs: 10000
Capacity in Kgs: 4540
Std Refrigerant: R-404A
Std Voltage: 230/1/60
Optional Voltage: 220/1/50, 460/3/60, 380/3/50, 575/3/60
Capacity in lbs: 15000
Capacity in Kgs: 6810
Std Refrigerant: R-404A
Std Voltage: 230/1/60
Optional Voltage: 220/1/50, 460/3/60, 380/3/50, 575/3/60
Capacity in lbs: 20000
Capacity in Kgs: 9080
